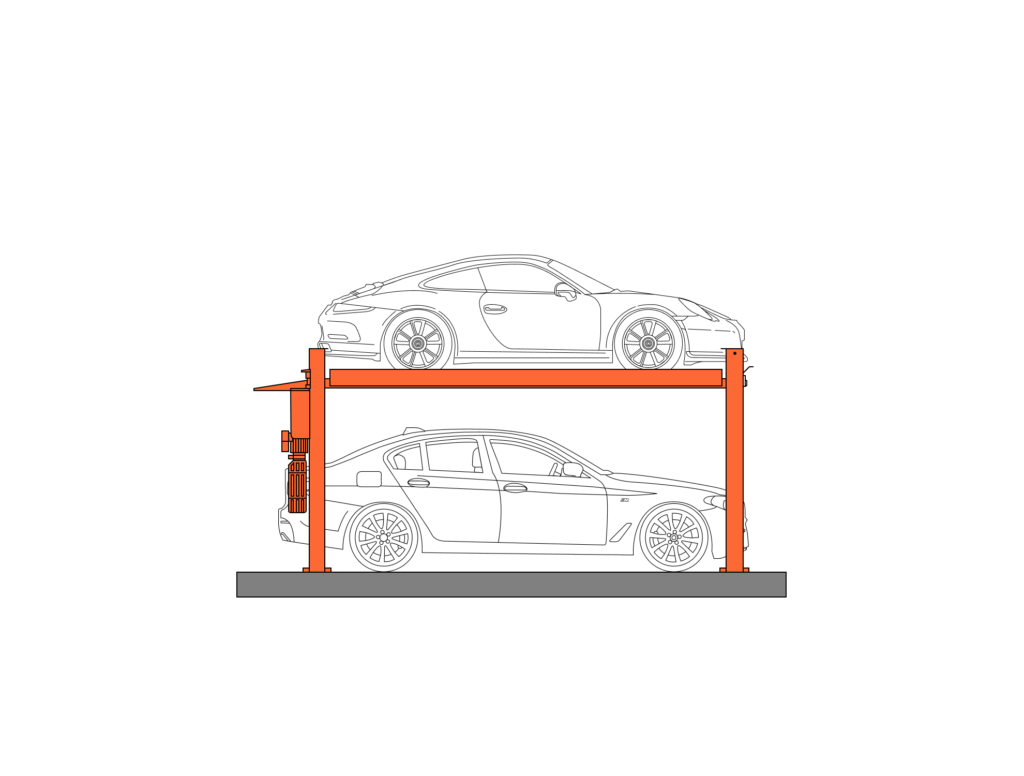

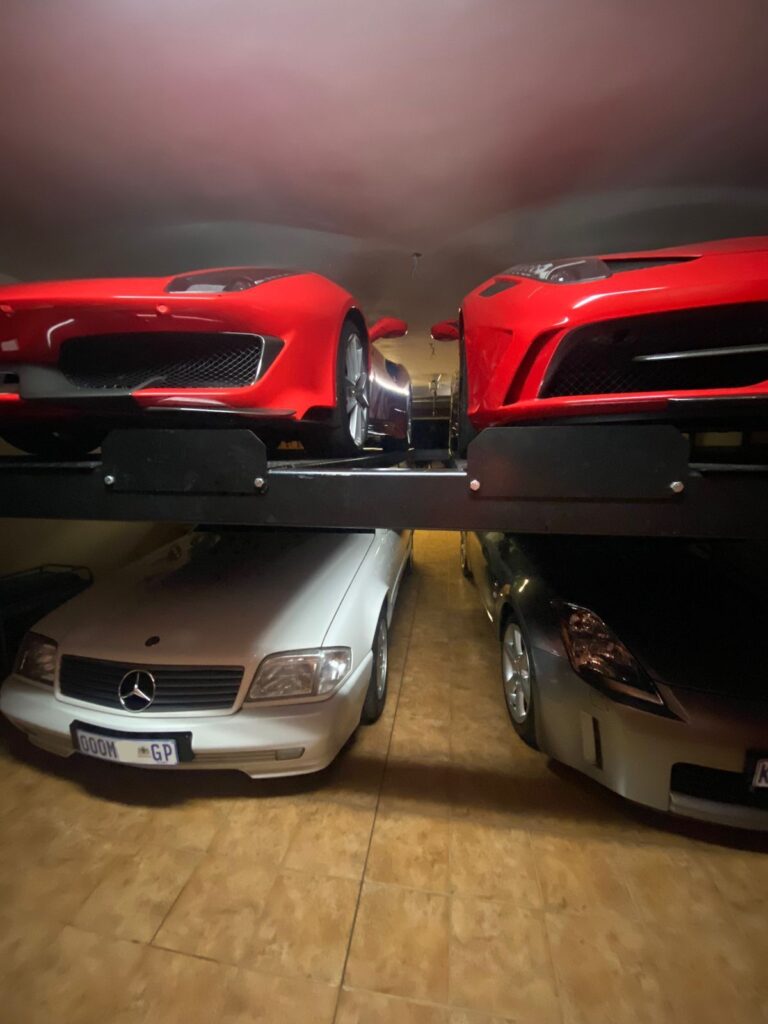

Fit your fleet in a double garage with the four car four post parking lift. This super-wide twin platform can lift two vehicles weighting up to a combined 4000kg, while providing ample space for two vehicles to park underneath. Two above and two below gives you space saving alongside the reduction of a middle post.
It is a dependent parking option, as both bottom vehicles need to be moved before the top two are lowered together. Driven by a hydraulic cylinder and steel ropes. The electronic auto-release makes operating the lift straight forward. Most suitable for garages at least 4255mm tall (to provide 2100mm for the top vehicle).
Features
Lifts two vehicles at once, providing parking for four in a small space. A wider sheave diameter than previous models reduces fatigue on the steel cables which are over-engineered for the 4000kg weight limit. A protective device locks if the unlikely loosening or failure of the steel cable is detected. Galvanised screws and bolts alongside a powder coat finish on the lift give it a long-lasting finish.
Product Description
Lift Capacity: 2 vehicles
Number of parked cars: 4
Max Lift Weight: 2700kg
Powered by: 2.2kw Hydraulic and Korean Lifting Chain
Power Supply: 100–480V, 1/3P, 50/60Hz
Height: Ground level 2000mm, 2nd floor 2100mm (top height limited by ceiling)
Safety: Anti-falling lock, Synchronisation Chain, TUV Rheinland Certified, CE compliant
Lift Dimension: Length 5500mm, Width 5330mm, 2583mm Height
Maximum Car Dimension: Length 5000mm, Width 1952mm, Height 2000mm
Lifting Speed: <50s
Descending Speed: <35s
