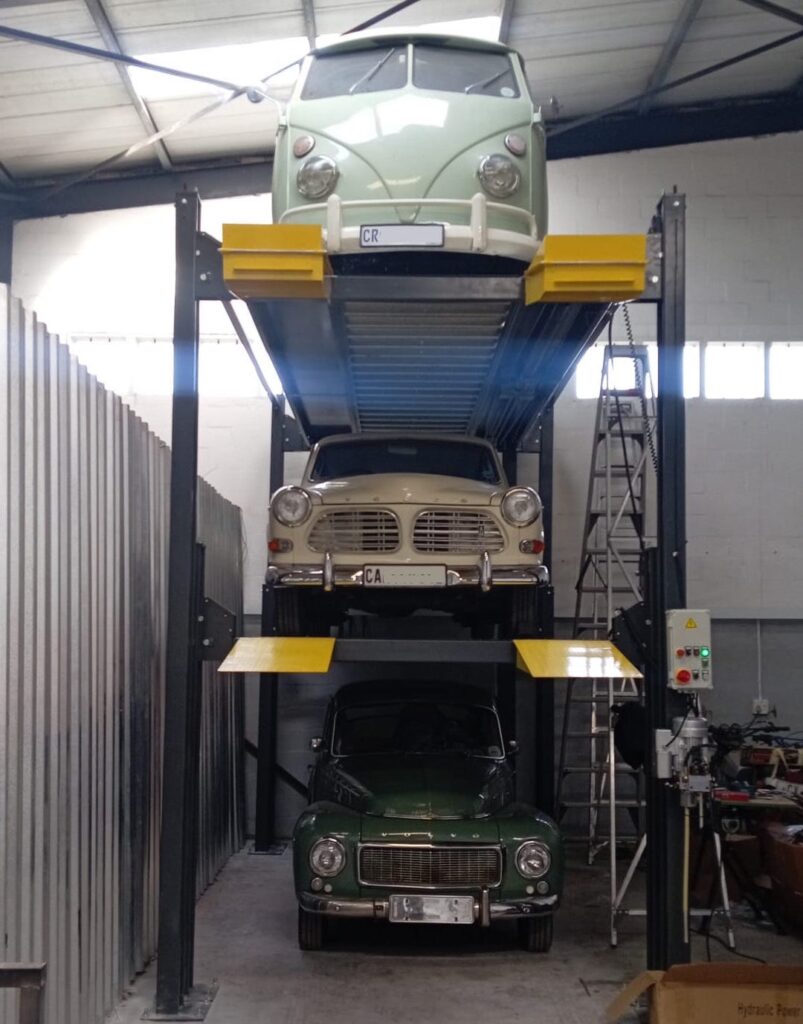

This compact stacking lift offers three parking spaces in a small footprint. The platforms move vertically, requiring the bottom two vehicles to be removed to gain access to the top. This is an ideal solution to store your fleet of cars while still being practical for daily use.
The top platform overlaps the middle platform when on the ground floor, creating a low base platform height of 150mm. Both platforms raise to the top height where the first vehicle is secured before the second platform lowers to the ground to lift the second vehicle into place, making space for the ground floor vehicle. A limit switch in the top of the post automatically stops the top floor at the specified height.
Features
Suitable for indoor use only – outdoor version available per special request. Lateral protection wings prevent vehicle from driving over the edge of the platform. The platforms have a full-size dynamic lock for travel up and down and an anti-fall lock every 100mm.
Product Description
Lift Capacity: 2 vehicles
Number of parked cars: 3
Max Lift Weight: Top level 2000kg, Second level 2500kg
Powered by: 3.0kw Hydraulic Pump
Power required: 220-420V, 1 or 3 phase, 50/60Hz
Height: Ground level 2100mm, 2nd floor 2100mm, 3rd floor limited by ceiling height
Safety: TUV Rheinland Certified
Outside Dimension: Length 5060mm, Width 2802mm, Height 4965mm
Maximum Car Dimension: Length 5060mm, Width ground floor – 2492mm, 2nd floor – 2100mm, 3rd floor 2200mm, Height 2100mm
Lifting Speed: 4000mm/min (no load), add 10 seconds when loaded
Certification: TUV Rheinland
