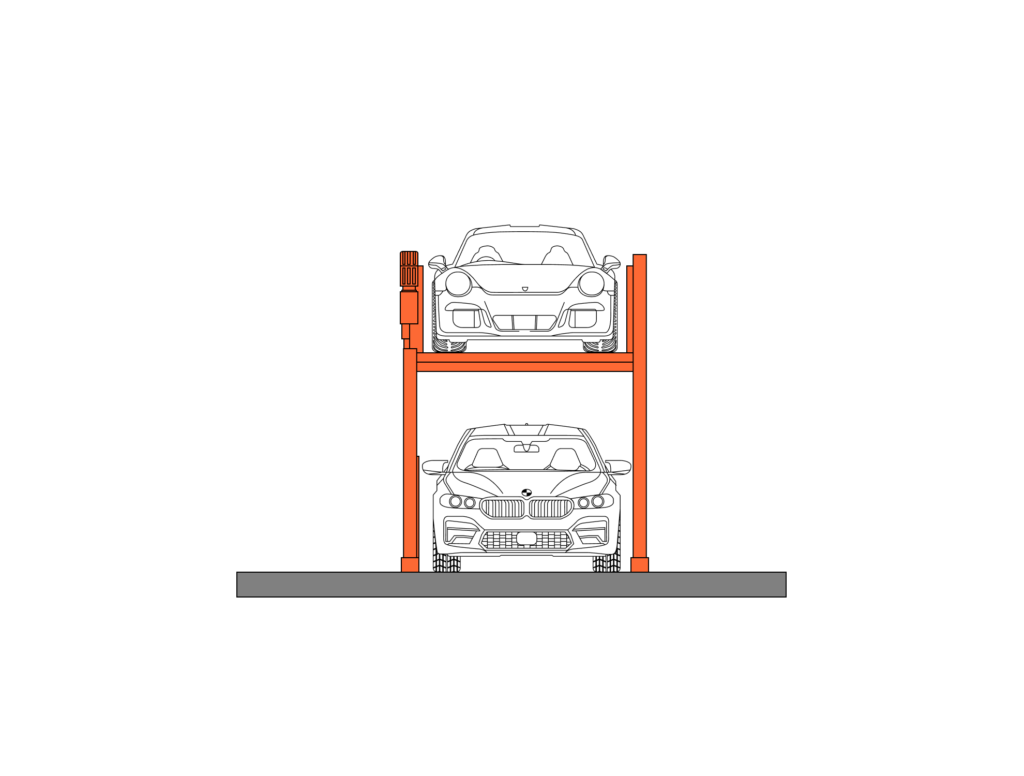

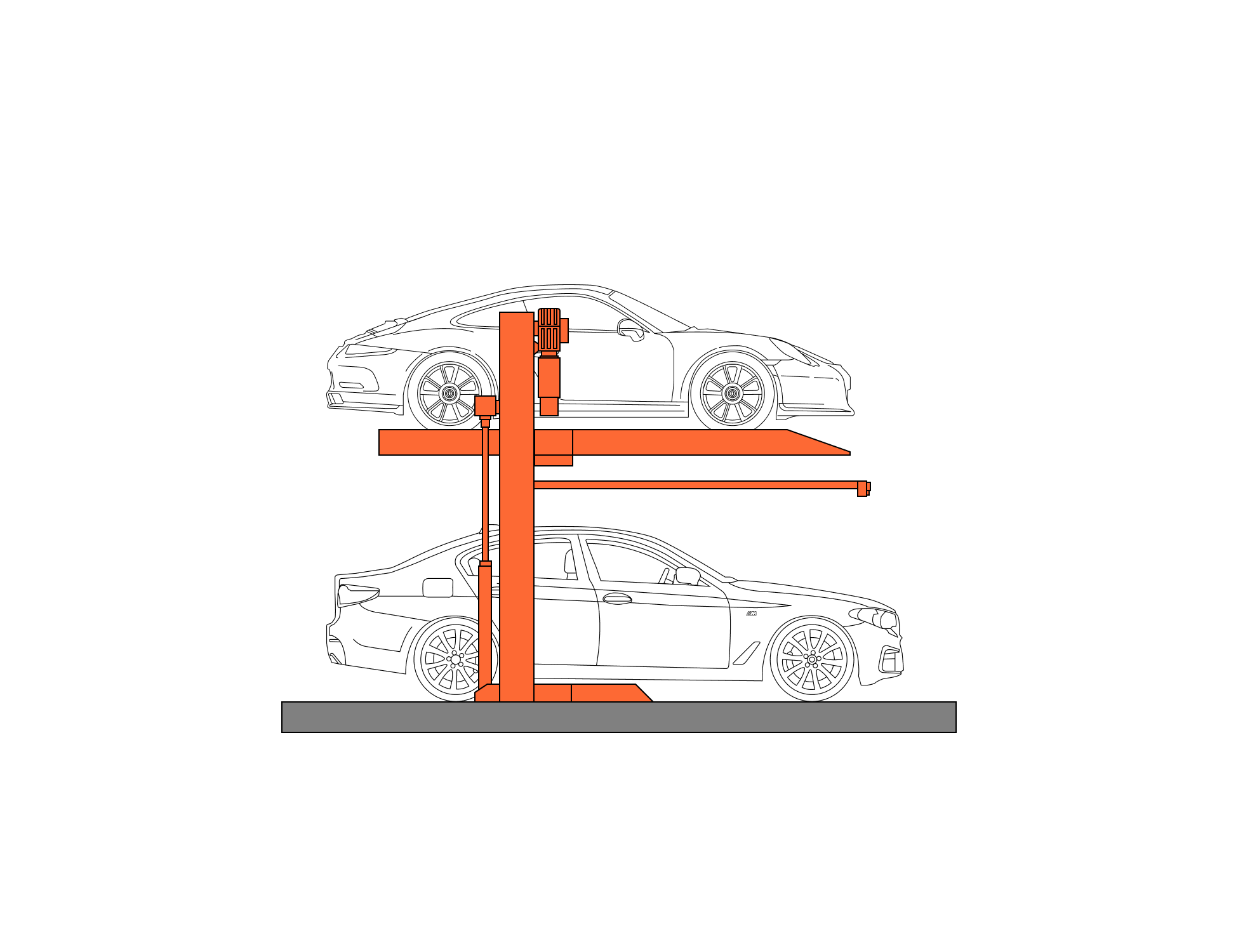

The two post parking lift is an elegant solution for a show room or a daily-driver garage. At the push of a button, it lifts the vehicle vertically making space for a second vehicle to park. Hydraulic cylinders do the heavy lifting while a ten-point catch, and synchronization chain ensures a safe and balanced lift.
This unit can share a post with a second unit, saving space while providing four parking bays. The overall dimensions for two bays sharing a post are 4929mm wide, saving 165mm.
Features
A metal platform ‘floor’ ensures a sturdy surface to prevent debris or oil dropping on the vehicle below. It is galvanized for longevity and textured to prevent slipping. The electric auto release makes lowering easier while an autolocking system is in place in case of a ‘cut’ in power. A limit switch in the top of the post automatically stops the lift at the specified height.
Product Description
Lift Capacity: 1 vehicle
Number of parked cars: 2
Max Lift Weight: 2700kg
Powered by: 2.2kw Hydraulic and Korean Lifting Chain
Power Required: 100–480V, 1 or 3 phase, 50/60Hz
Lock release: Electric auto release
Height: Ground level 2050mm, total height limited by ceiling
Safety: Anti-falling lock, Synchronisation Chain
Lift Dimension: Length 3990mm, Width 2540mm, Height 3320mm
Maximum Car Dimension: Length 5000mm, Width 2100mm
Lifting Speed: <50s
Descending Speed: <35s
Certification: Standard 2006/42/EC and EN14010, TUV Rheinland
